VLX 138 Panoramic Sliding Door

VLX 138 Panoramic Sliding Door in Tamiami, FL | Sightline Windows & Doors Tamiami

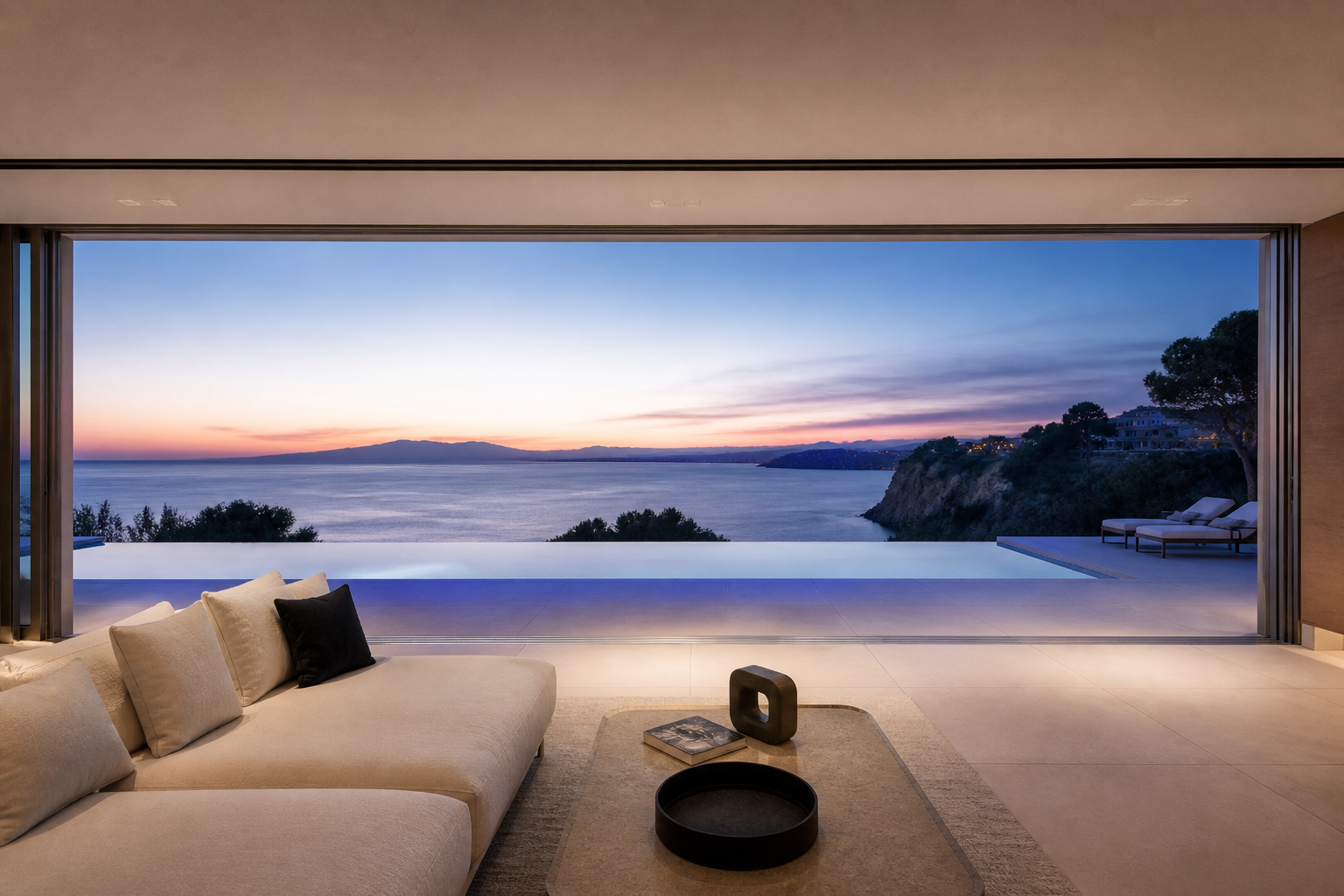

The VLX 138 Panoramic Sliding Door is a luxury large-span panoramic slider built for homeowners who refuse to compromise between outdoor connection and structural integrity. With expansive uninterrupted views and ultra-smooth glide on stainless bearings, this system transforms entire walls into moving glass. At Sightline Windows & Doors Tamiami, we’re an authorized ViewLux installation partner, which means every door we sell carries full manufacturer backing and is installed to warranty-safe standards. For properties across Tamiami, from canal-front homes near Tamiami Trail to newer builds in the Bird Road corridor, this door solves the problem of bulky frames blocking Florida’s best asset: the view. Call (786) 321-9118 to schedule your free on-site measurement and written quote.

Call (786) 321-9118

Product Overview - VLX 138 Panoramic Sliding Door

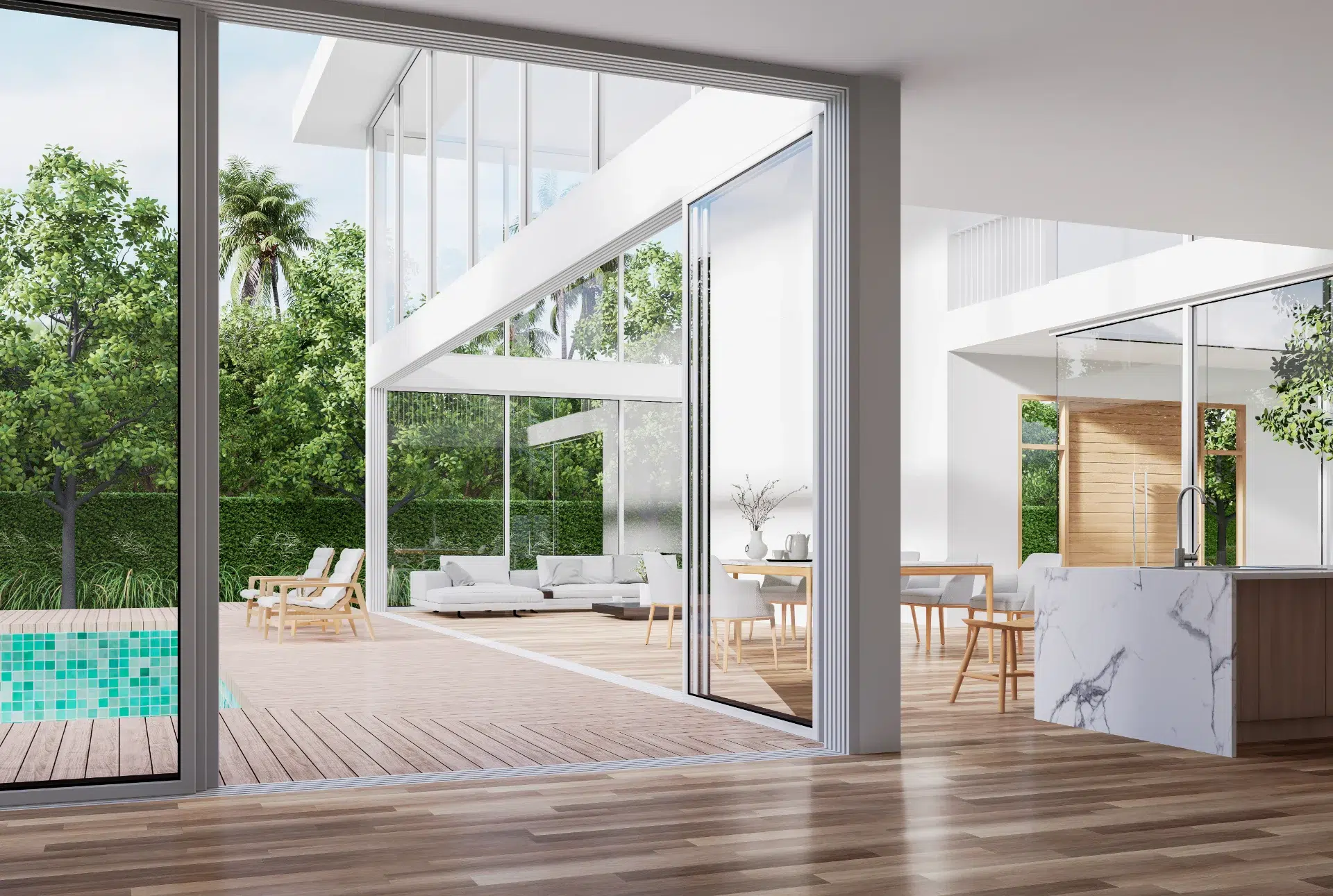

Architects and builders in Tamiami specify the VLX 138 when the design calls for transparency at scale. This isn’t a standard patio slider scaled up. It’s engineered from the track hardware outward to carry massive glass panels across openings up to 36 feet wide without the wobble, drag, or frame obstruction that ruins cheaper systems.

The design philosophy centers on disappearance: minimal vertical sightlines, flush thresholds that erase the boundary between interior and terrace, and stainless bearing assemblies that keep operation light even after years of salt air and humidity. In Tamiami, where afternoon thunderstorms roll in fast and homeowners live with their sliding doors open half the year, that durability matters.

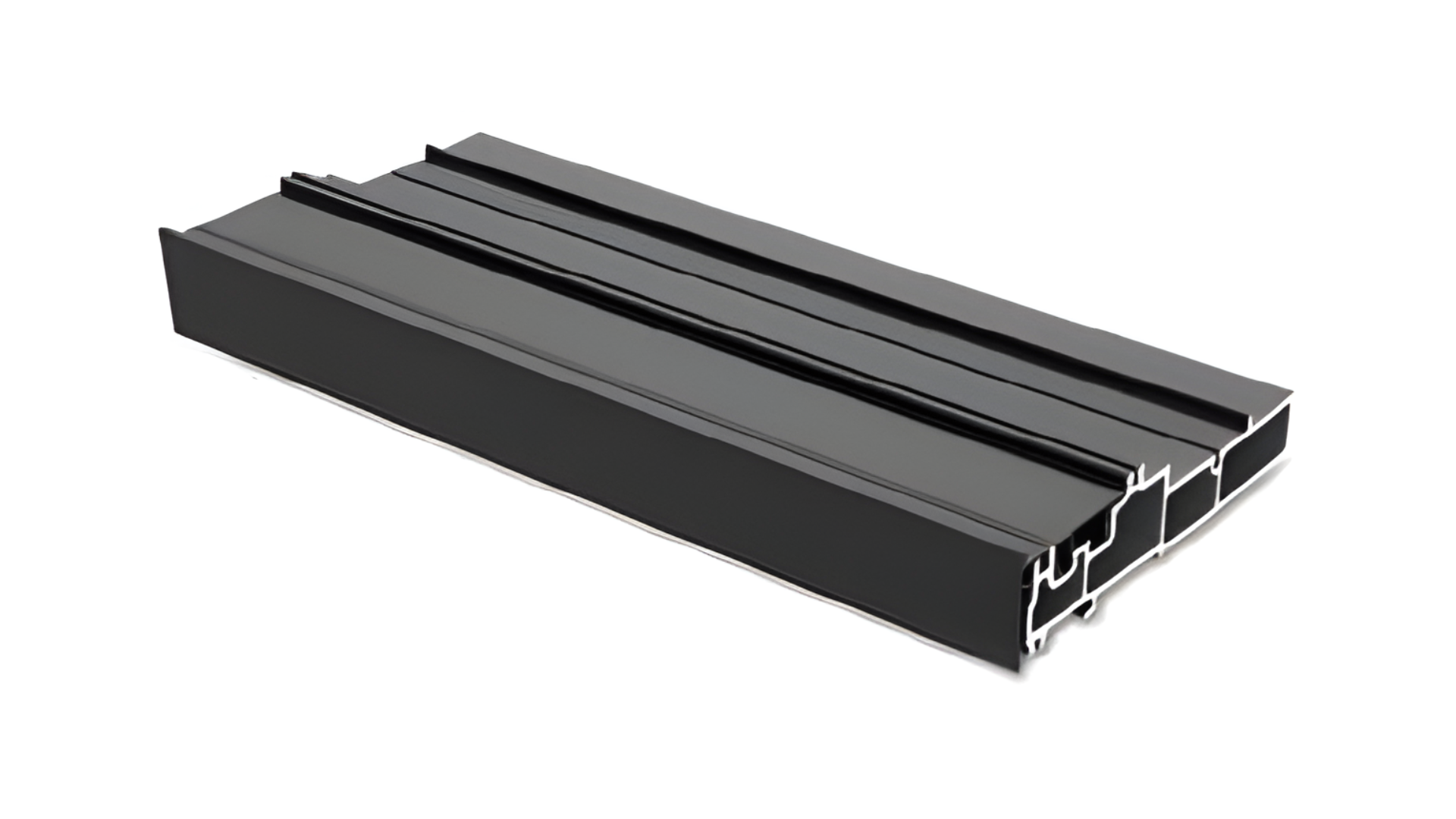

Materials start with a 0.138-inch wall thickness in the aluminum extrusion, substantially heavier than builder-grade stock. The 1.535-inch profile width strikes a calculated balance: narrow enough to maximize glass area, substantial enough to resist deflection across long spans. Buyers choose this series for three consistent reasons: the scale of opening it makes possible, the quality of daily operation, and the knowledge that ViewLux’s engineering is backed by authorized installers who understand the product. At Sightline Windows & Doors Tamiami, we’ve fitted the VLX 138 into homes overlooking the Everglades, pool decks in the Hammocks, and modern infill projects from Westwood Lakes to Fontainebleau. Each installation confirms what the specifications promise: this door disappears into the architecture and stays disappeared for decades.

Technical Specifications

Frame & Profile

• Wall thickness: 0.138″ heavy-gauge aluminum extrusion
• Profile width: 1.535″ for optimized glass-to-frame ratio
• Maximum opening span: up to 36 feet wide

Track Configurations

• 2-Track: standard dual-panel operation
• 3-Track: triple-panel with center-pass or end-stack options
• 4-Track: maximum panel count for the widest openings

Glass Options

• Clear, Low-E, Frosted, Obscure, Black Tint, Gray Tint
• Impact-resistant laminated glass available for High Velocity Hurricane Zone compliance

Finish Options

• Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood

Screen & Sill Options

• Screens: Retractable Screen or Sliding Screen
• Sills: Flush Sill, Low-Profile Sill, or Recessed Sill

Performance Ratings

• NFRC-rated thermal performance with thermal break technology
• AAMA 2400/2410 installation standard compliance
• AAMA 812 low-expansion foam sealant specification on all perimeter joints
• Rated for airtightness, waterproofing, mist prevention, sound control, and wind-load requirements for South Florida

Before

After

Performance Features

Thermal Efficiency

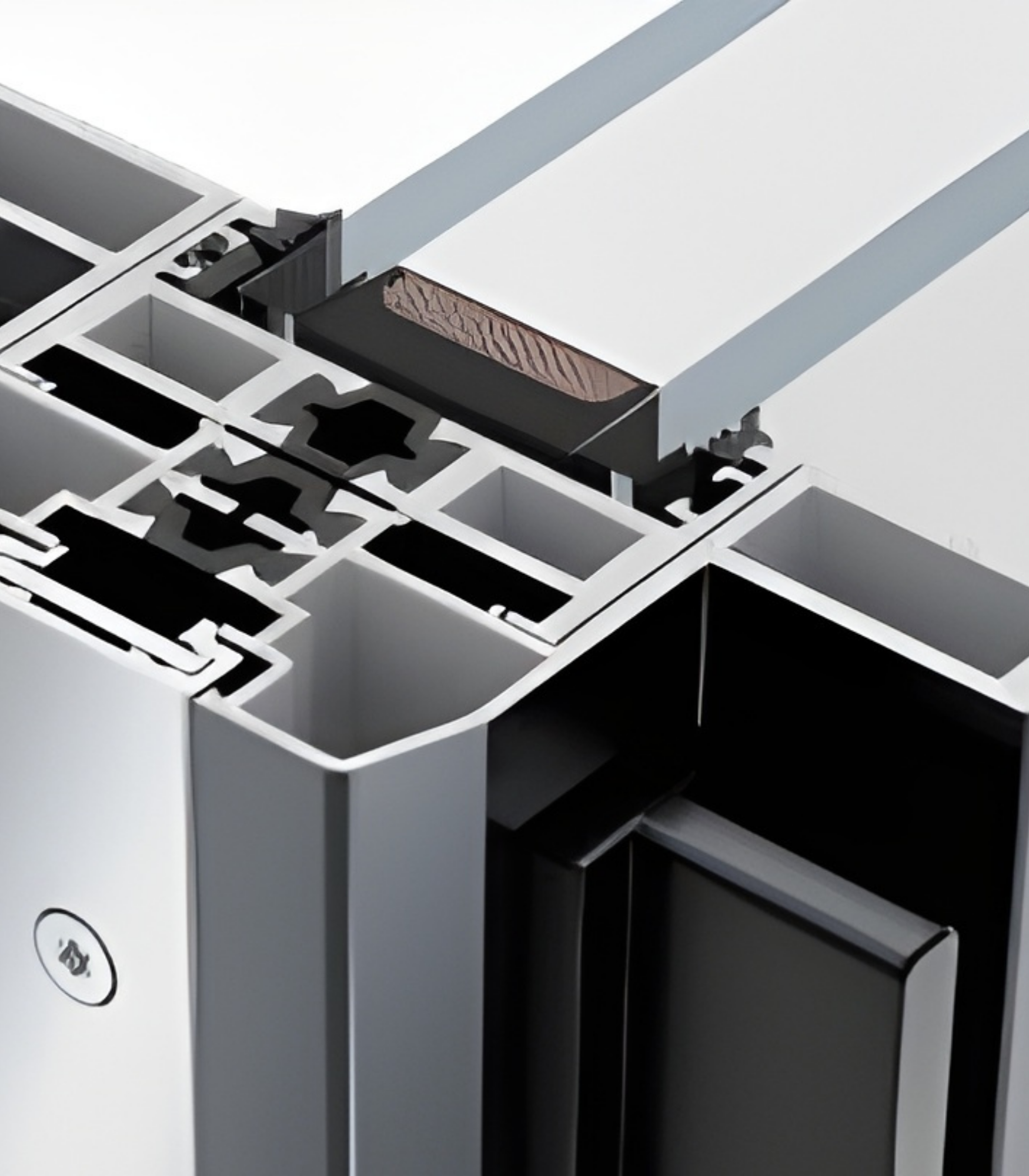

The VLX 138 incorporates thermal break technology that separates interior and exterior aluminum surfaces with a low-conductivity barrier. This NFRC-rated assembly reduces heat transfer in both directions, which matters intensely in Tamiami’s climate where summer cooling loads dominate energy bills. Pair with Low-E glass and the performance improves further.

Acoustic Performance

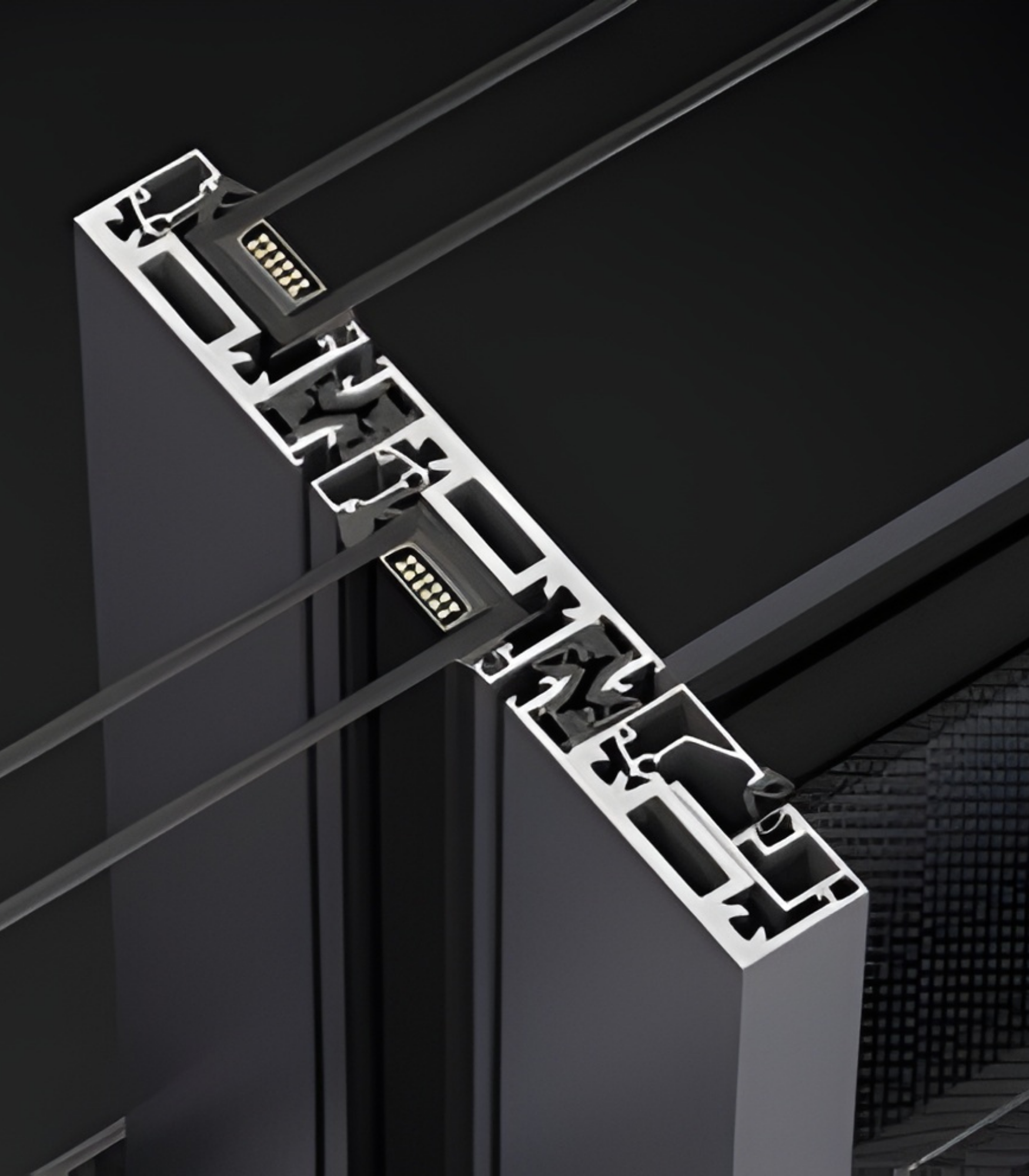

Multi-chamber frame design and dual durometer gaskets dampen sound transmission. For homes near Tamiami Trail, the Palmetto Expressway, or under flight paths, this means conversation-level interiors without sacrificing the open-door lifestyle Florida homeowners expect.

Airtightness & Weather Seal

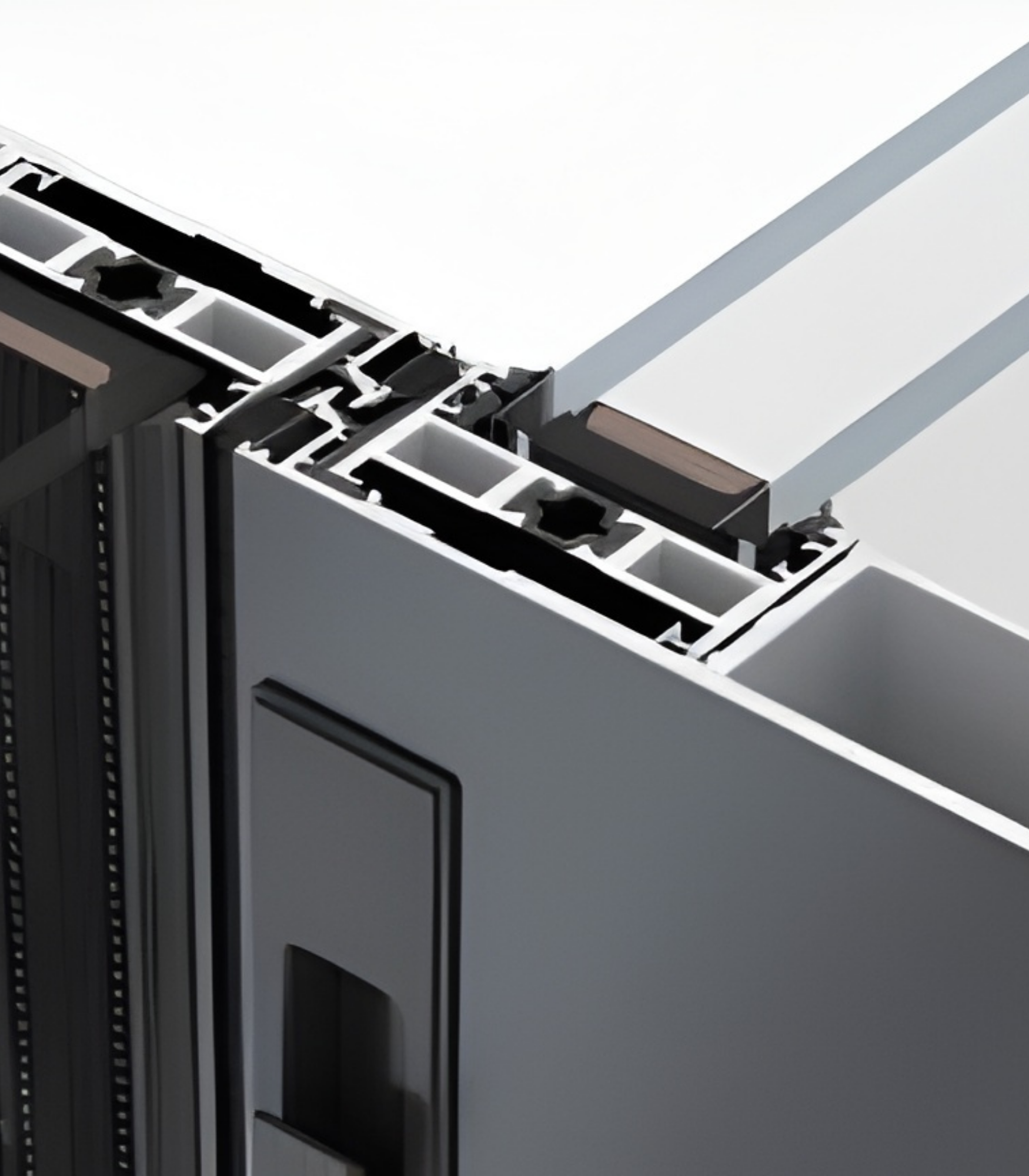

Compression seals and interlocking meeting stiles maintain positive closure against air infiltration. The system is tested and rated for airtightness per AAMA protocols, preventing the drafts that make conditioned spaces uncomfortable and expensive to maintain.

Waterproofing

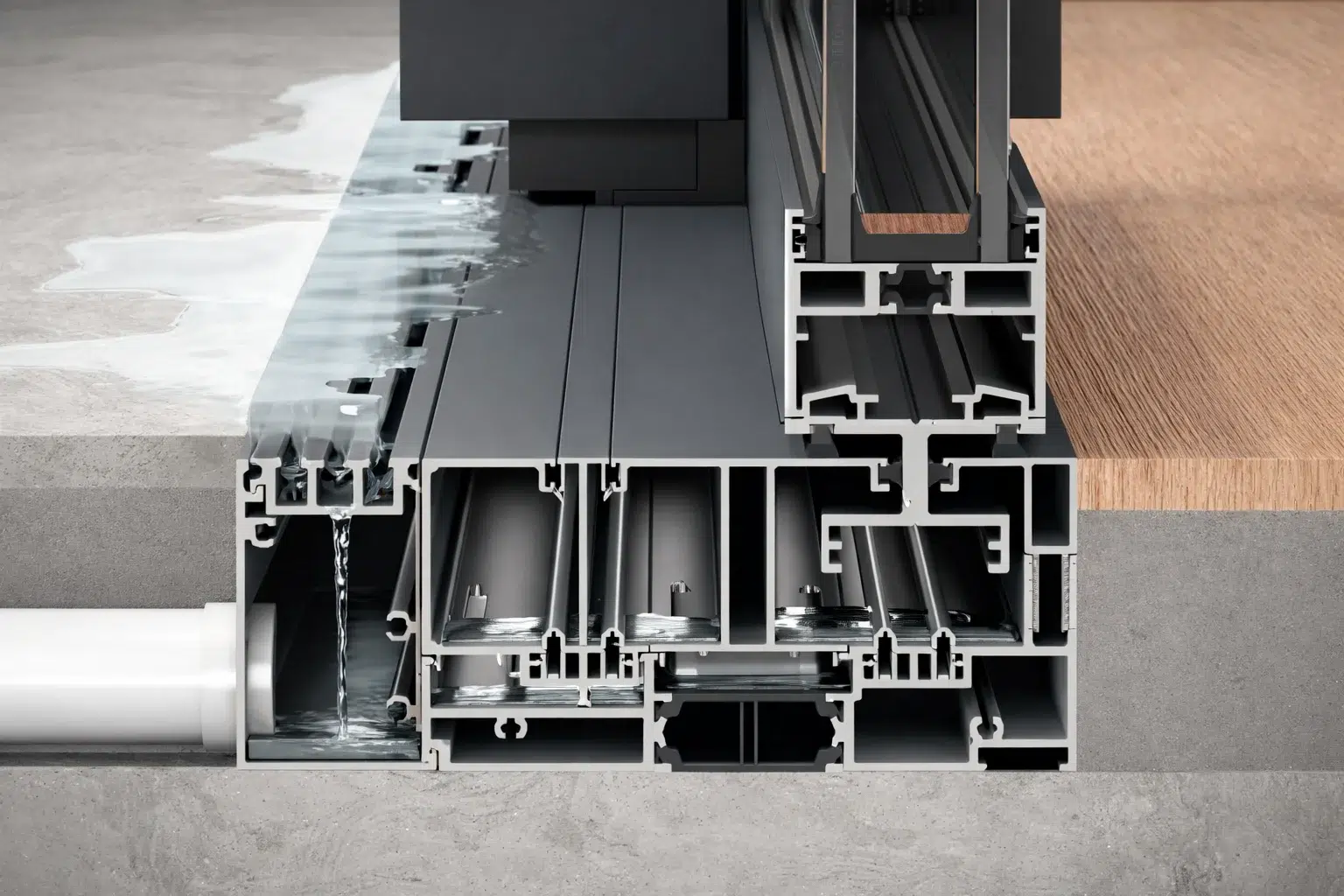

Integrated drainage channels, sloped sill profiles, and AAMA 812 low-expansion foam sealant on all perimeter joints create redundant barriers against wind-driven rain. In Tamiami, where afternoon storms can deliver inches of water in minutes, this engineered drainage path protects subfloors and wall cavities.

Wind Resistance

The 0.138-inch wall thickness and reinforced corner construction achieve wind-load ratings that meet or exceed local requirements for Miami-Dade County. Impact-resistant laminated glass options satisfy High Velocity Hurricane Zone standards where specified.

Security & Hardware

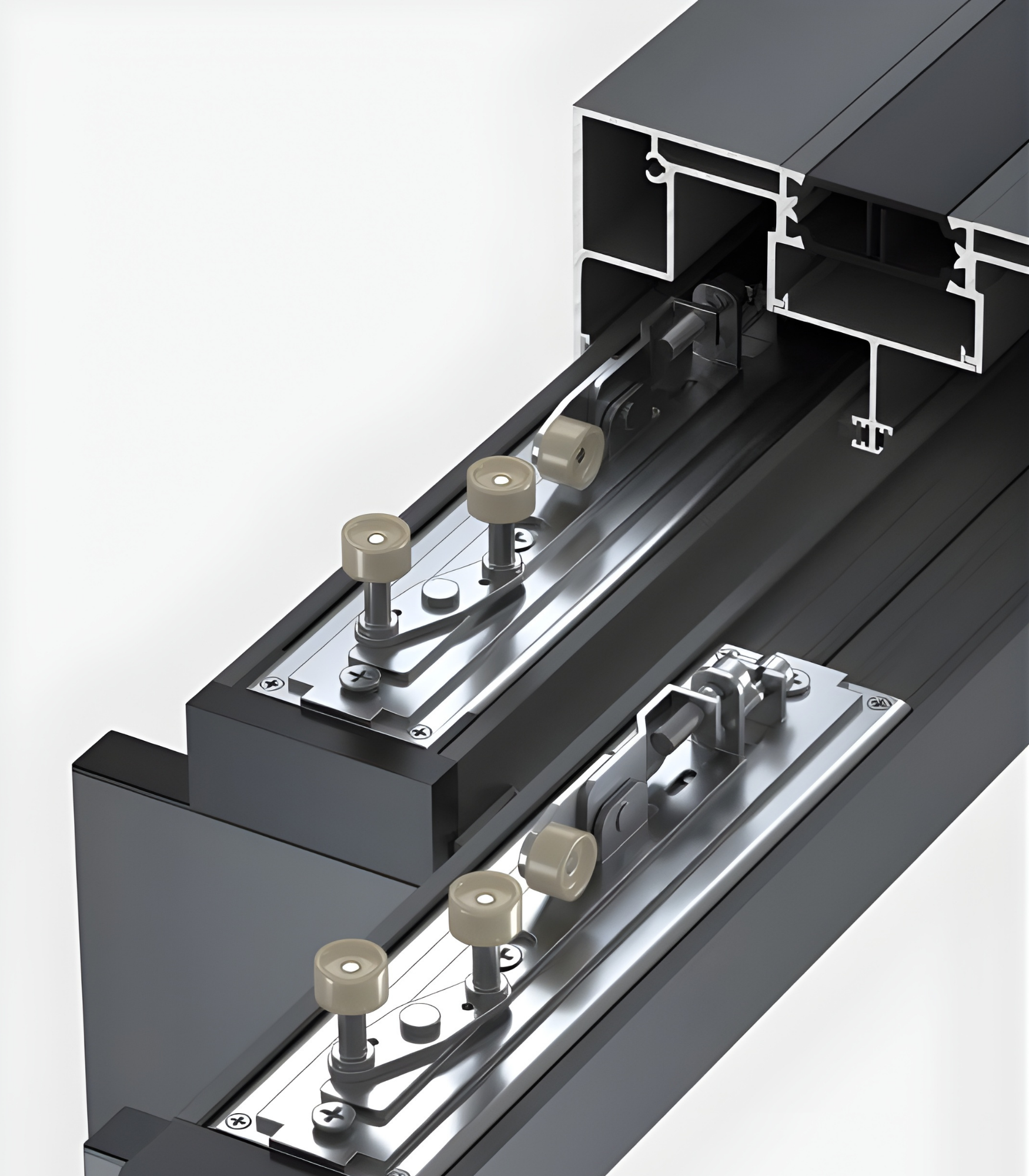

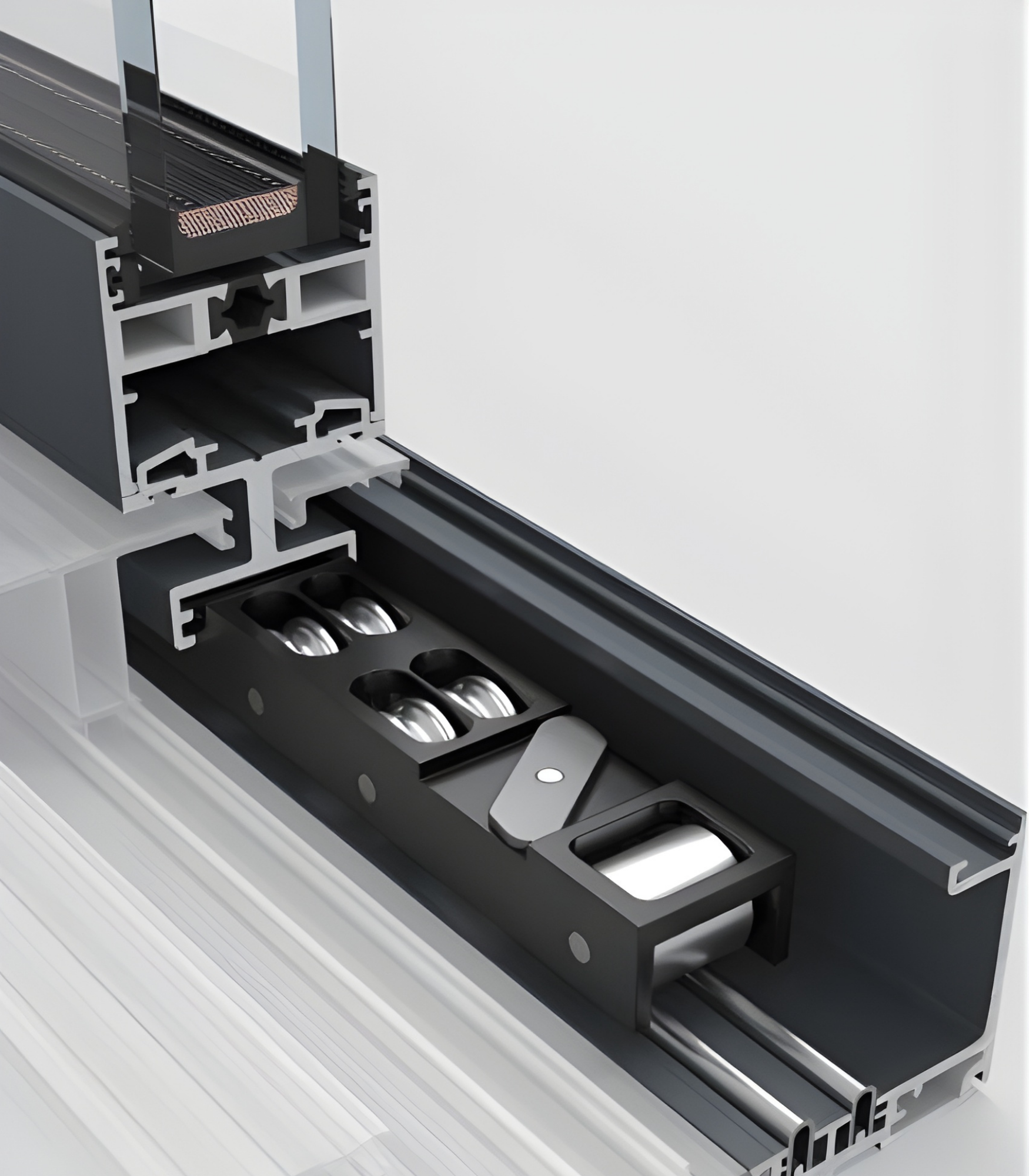

Multi-point locking engages at the sill, header, and primary handle location. Stainless bearing hardware resists corrosion in coastal environments. The hardware finish matches the selected frame color for visual coherence.

Color & Glass Options

The six finish options cover the full architectural spectrum Tamiami homes demand. Premium Black and Pure White dominate contemporary and minimalist projects from Doral to Kendall, where crisp contrast against stucco or stone defines the aesthetic. Anodized Silver carries the mid-century modern heritage still visible in original Tamiami neighborhoods, and it weathers to a soft patina rather than chalking. Bronze and Champagne warm up traditional Mediterranean and transitional designs without the maintenance burden of actual bronze cladding. Teak Wood finish, a high-fidelity woodgrain powder coat, satisfies HOA requirements in gated communities that mandate wood appearance while delivering aluminum’s structural stability and zero-rot performance.

Glass selection follows function. Clear glass maximizes visible light transmission for north-facing rooms and shaded courtyards. Low-E coating is the practical default for west and south exposures in Tamiami, rejecting solar heat gain while preserving view clarity. Frosted and Obscure options solve privacy needs for bathrooms, pool equipment enclosures, or tight side-yard setbacks without sacrificing daylighting. Black Tint and Gray Tint reduce glare for media rooms and bedrooms, and they lend a deliberate, gallery-like quality to interior spaces that many Tamiami designers specify.

Installation by Sightline Windows & Doors Tamiami in Tamiami

We’ve seen what happens when panoramic doors are treated like standard sliders. The frame racks. The panels bind. The warranty voids. At Sightline Windows & Doors Tamiami, we install the VLX 138 as a structural assembly, not a commodity product.

Our process begins with a pre-installation inspection of the rough opening: squareness, level, and structural integrity. On Tamiami homes, especially older construction with settled slabs or additions with modified load paths, this step prevents callbacks. We verify that the header above the opening carries the span without deflection, because a 36-foot door system cannot compensate for a sagging beam.

Setting the frame demands precision to 1/8 inch across the full width. We level, plumb, and square the sill first, then build the jamb and head assembly true to that reference. Shimming is structural, not cosmetic, placed to transfer load without creating twist. We anchor through the jamb with fasteners rated for the wind-load calculation specific to the Tamiami address, because Miami-Dade’s exposure categories vary block by block.

Perimeter sealing follows AAMA 812 specification: low-expansion foam sealant that fills the gap between frame and rough opening without distorting the assembly. Backer rod and sealant complete the exterior face. This detail, skipped by too many installers, is what prevents the air and water infiltration that destroys interior finishes and triggers mold.

Panel hanging comes last, with each roller carriage adjusted for uniform contact and smooth travel. We test operation across the full stroke, verify lock engagement at all points, and run a water spray test on the completed assembly. The site is cleaned before we leave. Documentation goes to ViewLux to preserve warranty coverage.

Improper installation voids the manufacturer warranty. That’s not a scare tactic; it’s the condition printed in the documentation. Sightline Windows & Doors Tamiami’s authorized partner status exists precisely because ViewLux recognizes that their product’s performance depends on the installer’s competence. In Tamiami’s climate, with salt air, intense UV, and hurricane exposure, that competence isn’t optional.

Frequently Asked Questions - VLX 138 Panoramic Sliding Door

What is the lead time for the VLX 138 Panoramic Sliding Door?

Lead time typically runs 8 to 12 weeks from final measurement and deposit, depending on glass selection, finish choice, and current manufacturing queue. Custom sizes and impact-rated configurations may extend toward the longer end. Call (786) 321-9118 for current scheduling and to reserve your production slot with a free estimate.

Does the VLX 138 qualify for energy tax credits?

The NFRC-rated thermal performance and qualifying Low-E glass configurations may contribute to federal energy efficiency tax credits depending on the tax year and your specific installation details. We provide certified performance documentation with every project for your accountant’s review. For current credit eligibility in Tamiami, call (786) 321-9118 and we’ll walk you through the product ratings that apply.

What warranty comes with the Panoramic Sliding Door?

ViewLux provides a limited lifetime warranty on the frame and hardware, with glass coverage for 20 years against seal failure, contingent on authorized installation. Sightline Windows & Doors Tamiami adds our own workmanship warranty on the installation itself. Warranty registration is completed by our team, not left to the homeowner. Call (786) 321-9118 for complete warranty terms.

Can I customize the size?

Yes, the VLX 138 is engineered to order up to 36 feet in width, with panel counts and track configurations selected to suit your specific opening. Height is customizable within structural limits. We measure on-site in Tamiami, produce shop drawings for your approval, and manufacture to those exact dimensions. Call (786) 321-9118 to schedule measurement and explore configuration options.

How do I maintain aluminum frames in Tamiami’s climate?

Rinse frames quarterly with fresh water to remove salt and pollen accumulation, wash annually with mild soap and soft cloth, and lubricate the track with silicone spray twice yearly. Avoid abrasive cleaners and pressure washers, which damage anodized and painted finishes. The stainless bearing hardware requires no additional lubrication. For a maintenance checklist specific to your installation, call (786) 321-9118.

Get a Quote - VLX 138 Panoramic Sliding Door in Tamiami

Every project starts with a conversation and a measurement. We’ll visit your Tamiami property, assess the opening, discuss track configuration and glass options, and deliver a written line-item quote with no obligation. No change orders, no surprises, just the door you specified installed to the standard the manufacturer intended. Call (786) 321-9118 or reach out through our site to schedule your free estimate with Sightline Windows & Doors Tamiami.

Written by the team at Sightline Windows & Doors Tamiami, serving Tamiami since 2015.
